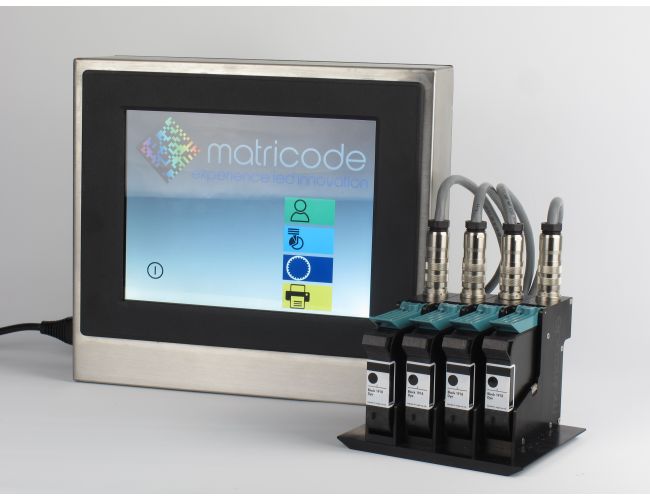

Matricode m-jet series

Matricode m-jet series

Sku: m-jet0
£0.00

In stock

Download the product brochure portrait format

Download the m-jet brochure landscape


The new, reliable, high speed range of Industrial digital printers from Matricode Ltd  using the well tried, tested and trusted hp TIJ 2.5 ink jet technology. The m-jet printers are designed to meet your On-line, Live, Hands-Free Coding & Marking applications.


Complete range of no mess coding & marking ink jet printers from 1 printhead up to 8 printheads module systems. Each model of the m-jet offers superior print quality at up to 600 dpi resolution of alphanumeric texts, variable data, barcodes, graphics and logos.  Printer variants are available to allow printing of  images from a maximum of 12.5 mm using a 1-pen printhead system to 100 mm in height. for an 8-pen printhead configuration"  up to 100mm high at speeds of up to 5 m/s.


With the m-jet series you do not have to compromise between what is on offer and your requirements. You choose the printer system that you need, not what is available…print images from a maximum of 12.5 mm to 100 mm in height.


You configure your printer as you wish from one to 8 pens combined in a single printhead or configured in groups of printheads to allow, for instance, for printing on different production lines using the same controller or for printing on different sides of, say a box, at the same time.

QR Code:
Read More

Outstanding performance

 A range of printers using a technology you can rely upon.

  • Resolution 600x600 dpi
  • Print speed up to 150 m/min or 500 ft/min
  • Print height up to 100 mm (4”)
  • Throw distance  up 5 mm
  • Print on a wide variety of substrates- including plastics, metals, woods, carton boxes, aluminium and pharmaceutical blisters pack?
  • Practically maintenance free

Powerful features for product Identification, Serialisation & Track & Trace

  • Touch screen user interface.
  • Full sets of latest 1-D and 2-D barcodes for Track and Trace.
  • Support for GS1 formatted data
  • Multiple security level access.
  • Compliance with FDA 21CFR part 11, CIP,
  • Allows you to print unique PIN codes
  • Implement secure Serialisation schemes to meet 21CFR part 11, CIP,
  • Counters
  • Shifts & batch codes
  • Fully configurable text and images supported on a Windows Embedded platform.
  • Variable data.
  • Modular grouping of pens with independent configuration of orientation and printed image length.
  • High performance image compilation (raster Image Processor - RIP)

Flexibility, expandability, simple to install; just plug it and run it

  • Can print on metals, plastics, woods, flexible films, PVC, polypropylene, foil blister packs, pharmaceutical, medicine packaging, carton boxes, woods,
  • Barcode, logos, texts, graphics up to 100 mm (4”) high
  • Track & trace with vision system
  • Several printer system configurations to suit application
